Atlas: Plus+Tite® Pre Bulbed Threaded Inserts

  • Dimensions
    		•
  • Material & Finish Specs
    		•
  • Part Number Designation
    		•

    Atlas blind threaded inserts

    PRINT THIS PAGE
    APPLICATION INFO & PRICING

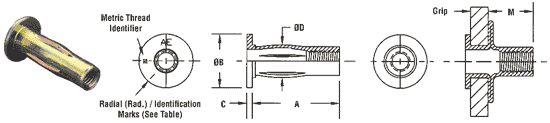

    DIMENSIONS

    All dimensions are in inches.
    Thread Size
    Part Number
    Grip Range
    Identification Mark
    Open End
    Hole Size in Sheet +.006 -.000
    A
    B
    C
    D
    M
    ±0.015
    Nom.
    Nom.
    Max.
    Max.
    1/4-20
    AES25P280PB
    .020 - .280
    None
    1.000
    0.625
    0.057
    0.384
    0.520
    0.390
    1/4-20
    AES25P500PB
    .280 - .500
    1 Rad.
    1.235
    0.625
    0.057
    0.384
    0.520
    0.390
    5/16-18
    AES31P280PB
    .020 - .280
    None
    1.118
    0.750
    0.062
    0.495
    0.570
    0.500
    5/16-18
    AES31P500PB
    .280 - .500
    1 Rad.
    1.348
    0.750
    0.062
    0.495
    0.570
    0.500

    All dimensions are in millimeters.
    Thread Size X Pitch
    Part Number
    Grip Range
    Identification Mark
    Open End
    Hole Size in Sheet +0.15
    A
    B
    C
    D
    M
    ±0.38
    Nom.
    Nom.
    Max.
    Max.
    M6 x 1
    AESM6P7.1PB
    .5 - 7.1
    None
    25.400
    15.880
    1.450
    9.750
    13.200
    9.910
    M6 x 1
    AESM6P12.7PB
    7.1 - 12.7
    1 Rad.
    31.340
    15.880
    1.450
    9.750
    13.200
    9.910
    M8 x 1.25
    AESM8P7.1PB
    .50 - 7.1
    None
    28.400
    19.050
    1.570
    12.570
    14.480
    12.700
    M8 x 1.25
    AESM8P12.7PB
    7.1 - 12.7
    1 Rad.
    34.240
    19.050
    1.570
    12.570
    14.480
    12.700

    Back to Top


    MATERIAL AND FINISH SPECS

    Type
    Material
    Standard Finish
    Unified 2B/21 Per ASME B1.1
    Metric 6H/21 Per ASME B1.13M
    Steel, C-1008 or C-1010, or Equivalent
    Zinc Plate per ASTM B 633, Fe/Zn 8, Type II
    .0003" thick with clear protective coating



    Back to Top


    PART NUMBER DESIGNATION

    AE
    S

    25

    P
    280
    PB


    Type
    Material

    Thread
    Code

    PlusTite
    Designation
    Max.
    Grip
    Pre-Bulbed
    Designation



    Back to Top
