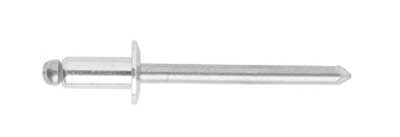

N Rivet™ Fastening System
This fastening system has a positive internal mechanical locking feature with superior vibration
and water resistance. Available in a variety of materials and headstyles.
Benefits:
- Low Cost
Substantial savings in installed costs can be realized when N Rivet™ fasteners are used in place of spotwelds, adhesives, screws, or bolts.
- Quick Installation
When used with manual or hydraulic rivet tools, N Rivet™ fasteners are installed quickly and easily from one side of the workpiece.
- Increased Mandrel Retention
The unique design of the mandrel head ensures positive retention after installation.

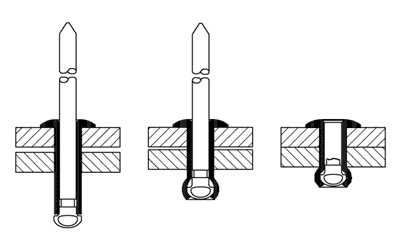

Non-structural blind breakstem rivet designed for a wide range of applications.
Available in a variety of materials and combinations with low profile, large flange or countersunk head styles.

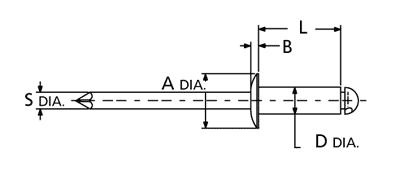

DIMENSIONAL PROTRUDING HEAD
|
|
Part |
Grip |
|
| Diameter |
|
Number |
Range |
L Dim.Max |
|
|
|
|
|
| 3/32" |
2,4mm |
****.32 |
.020 -.125 |
0.250 |
| Hole Size= |
.097-.100 (2,46 - 2,54) |
|
5.1 - 3.2 |
6.400 |
| A dia.= |
.187 (4,75) |
****.34 |
.126 - 250 |
0.375 |
| B max = |
.032 (,81) |
|
3.2 - 6.4 |
9.500 |
| D nom = |
.093 (2,36) |
****.36 |
.251 - .375 |
0.500 |
| S nom = |
.057 (1,45) |
|
6.4 - 9.5 |
12.700 |
|
|
|
|
|
| 1/8" |
2,4mm |
****.41 |
Up to .062 |
0.212 |
| Hole Size= |
.129 - .133 (3.28 - 3.38) |
|
1.6 - 3.2 |
5.400 |
| A dia.= |
.250 (6.35) |
****.42 |
.063 - .125 |
0.275 |
| B max = |
.040 (1.02) |
|
3.2 - 4.4 |
7.000 |
| D nom = |
.125 (3.18) |
****.43 |
.126 - .187 |
0.337 |
| S nom = |
.076 (1.93) |
|
3.2 - 4.7 |
8.600 |
|
|
****.44 |
.188 - .250 |
0.400 |
|
|
|
4.8 - 6.4 |
10.200 |
|
|
****.45 |
.251 - .312 |
0.462 |
|
|
|
6.4 - 7.9 |
11.700 |
|
|
****.46 |
.313 - .375 |
0.535 |
|
|
|
8.0 - 9.5 |
13.600 |
|
|
****.48 |
.376 - .500 |
0.670 |
|
|
|
9.6 - 12.7 |
17.000 |
|
|
****.410 |
.501 - .625 |
0.805 |
|
|
|
12.8 - 15.9 |
20.400 |
|
|
|
|
|
| 5/32" |
4.0mm |
****.52 |
.020 - .125 |
0.300 |
| Hole Size= |
.160 - .164 (4.06 - 4.17) |
|
.51 - 3.2 |
7.600 |
| A dia.= |
.312 (7.92) |
****.54 |
.126 - .250 |
0.425 |
| B max= |
.050 (12.7) |
|
3.2 - 6.4 |
10.800 |
| D nom = |
.156 (3.96) |
****.56 |
.251 - .375 |
0.550 |
| S nom = |
.095 (2.41) |
|
6.4 - 9.5 |
14.000 |
|
|
****.58 |
.376 - .500 |
0.695 |
|
|
|
9.6 - 12.7 |
17.700 |
|
|
****.510 |
.501 - .625 |
0.830 |
|
|
|
12.8 - 15.9 |
21.000 |
|
|
|
|
|
| 3/16" |
4.8mm |
****.62 |
.020 - .125 |
0.325 |
| Hole Size= |
.192 - .196 (4.88 - 4.98) |
|
.51 - 3.2 |
8.300 |
| A dia.= |
.375 (9.53) |
****.64 |
.126 - .250 |
0.450 |
| B max= |
.060 (1.52) |
|
3.2 - 6.4 |
11.400 |
| D nom = |
.187 (4.75) |
****.66 |
.251 - .375 |
0.575 |
| S nom = |
.114 (2.90) |
|
6.4 - 9.5 |
14.600 |
|
|
****.68 |
.376 - .500 |
0.700 |
|
|
|
9.6 - 12.7 |
17.800 |
|
|
****.610 |
.501 - .625 |
0.850 |
|
|
|
12.8 - 15.9 |
21.600 |
|
|
****.612 |
.626 - .750 |
0.980 |
|
|
|
15.9 - 19.1 |
24.900 |
|
|
****.614 |
.751 - .875 |
1.110 |
|
|
|
19.1 - 22.2 |
28.200 |
|
|
****.616 |
.876 - 1.00 |
1.240 |
|
|
|
22.3 - 25.4 |
31.500 |
|
|
|
|
|
| 1/4" |
6.4mm |
****.82 |
.020 - .125 |
0.375 |
| Hole Size= |
.257 - .261 (6.53 - 6.63) |
|
.51 - 3.2 |
9.500 |
| A dia.= |
.500 (12.7) |
****.84 |
.126 - .250 |
0.500 |
| B max= |
.080 (2.03) |
|
3.2 - 6.4 |
12.700 |
| D nom = |
.250 (6.35) |
****.86 |
.251 - .375 |
0.625 |
| S nom = |
.151 (3.84) |
|
6.4 - 9.5 |
15.900 |
|
|
****.88 |
.376 - .500 |
0.750 |
|
|
|
9.6 - 12.7 |
19.100 |
|
|
****.810 |
.501 - .625 |
0.900 |
|
|
|
12.8 - 15.9 |
22.900 |
|
|
****.812 |
.626 - .750 |
1.030 |
|
|
|
15.9 - 19.1 |
26.200 |
|
|
****.814 |
.751 - .875 |
1.160 |
|
|
|
19.1 - 22.2 |
29.500 |
|
|
****.816 |
.876 - 1.00 |
1.290 |
|
|
|
22.3 - 25.4 |
32.800 |
Back to Top

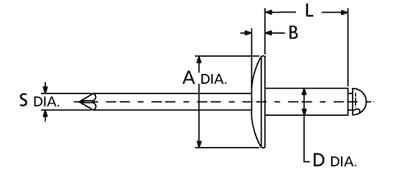

DIMENSIONAL LARGE FLANGE HEAD
|
|
Part |
Grip |
|
| Diameter |
|
Number |
Range |
L Dim.Max |
| 1/8" |
2,4mm |
****.41 |
Up to .062 |
0.212 |
| Hole Size= |
.129 - .133 (3.28 - 3.38) |
|
1.6 - 3.2 |
5.400 |
| A dia.= |
.375 (9.53) |
****.42 |
.063 - .125 |
0.275 |
| B max = |
.065 (1.65) |
|
3.2 - 4.4 |
7.000 |
| D nom = |
.125 (3.18) |
****.43 |
.126 - .187 |
0.337 |
| S nom = |
.076 (1.93) |
|
3.2 - 4.7 |
8.600 |
|
|
****.44 |
.188 - .250 |
0.400 |
|
|
|
4.8 - 6.4 |
10.200 |
|
|
****.45 |
.251 - .312 |
0.462 |
|
|
|
6.4 - 7.9 |
11.700 |
|
|
****.46 |
.313 - .375 |
0.535 |
|
|
|
8.0 - 9.5 |
13.600 |
|
|
****.48 |
.376 - .500 |
0.670 |
|
|
|
9.6 - 12.7 |
17.000 |
|
|
****.410 |
.501 - .625 |
0.805 |
|
|
|
12.8 - 15.9 |
20.400 |
|
|
|
|
|
| 5/32" |
4.0mm |
****.52 |
.020 - .125 |
0.300 |
| Hole Size= |
.160 - .164 (4.06 - 4.17) |
|
.51 - 3.2 |
7.600 |
| A dia.= |
.469 (11.92) |
****.54 |
.126 - .250 |
0.425 |
| B max= |
.075 (1.91) |
|
3.2 - 6.4 |
10.800 |
| D nom = |
.156 (3.96) |
****.56 |
.251 - .375 |
0.550 |
| S nom = |
.095 (2.41) |
|
6.4 - 9.5 |
14.000 |
|
|
****.58 |
.376 - .500 |
0.695 |
|
|
|
9.6 - 12.7 |
17.700 |
|
|
****.510 |
.501 - .625 |
0.830 |
|
|
|
12.8 - 15.9 |
21.000 |
|
|
|
|
|
| 3/16" |
4.8mm |
****.62 |
.020 - .125 |
0.325 |
| Hole Size= |
.192 - .196 (4.88 - 4.98) |
|
.51 - 3.2 |
8.300 |
| A dia.= |
.625 (15.88) |
****.64 |
.126 - .250 |
0.450 |
| B max= |
.092 (2.34) |
|
3.2 - 6.4 |
11.400 |
| D nom = |
.187 (4.75) |
****.66 |
.251 - .375 |
0.575 |
| S nom = |
.114 (2.90) |
|
6.4 - 9.5 |
14.600 |
|
|
****.68 |
.376 - .500 |
0.700 |
|
|
|
9.6 - 12.7 |
17.800 |
|
|
****.610 |
.501 - .625 |
0.850 |
|
|
|
12.8 - 15.9 |
21.600 |
|
|
****.612 |
.626 - .750 |
0.980 |
|
|
|
15.9 - 19.1 |
24.900 |
|
|
****.614 |
.751 - .875 |
1.110 |
|
|
|
19.1 - 22.2 |
28.200 |
|
|
****.616 |
.876 - 1.00 |
1.240 |
|
|
|
22.3 - 25.4 |
31.500 |
|
|
|
|
|
| 1/4" |
6.4mm |
****.82 |
.020 - .125 |
0.375 |
| Hole Size= |
.257 - .261 (6.53 - 6.63) |
|
.51 - 3.2 |
9.500 |
| A dia.= |
.750 (19.05) |
****.84 |
.126 - .250 |
0.500 |
| B max= |
.107 (2.64) |
|
3.2 - 6.4 |
12.700 |
| D nom = |
.250 (6.35) |
****.86 |
.251 - .375 |
0.625 |
| S nom = |
.151 (3.84) |
|
6.4 - 9.5 |
15.900 |
|
|
****.88 |
.376 - .500 |
0.750 |
|
|
|
9.6 - 12.7 |
19.100 |
|
|
****.810 |
.501 - .625 |
0.900 |
|
|
|
12.8 - 15.9 |
22.900 |
|
|
****.812 |
.626 - .750 |
1.030 |
|
|
|
15.9 - 19.1 |
26.200 |
|
|
****.814 |
.751 - .875 |
1.160 |
|
|
|
19.1 - 22.2 |
29.500 |
|
|
****.816 |
.876 - 1.00 |
1.290 |
|
|
|
22.3 - 25.4 |
32.800 |
Back to Top

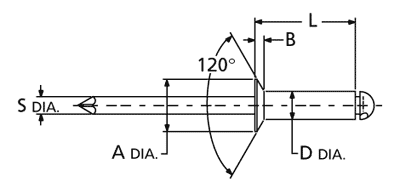

DIMENSIONAL COUNTERSUNK HEAD
|
|
Part Number |
Grip Range |
L Dim.Max |
| Diameter |
|
| 3/32" |
2,4mm |
****.32 |
.020 -.125 |
0.250 |
| Hole Size= |
.097-.100 (2,46 - 2,54) |
|
5.1 - 3.2 |
6.400 |
| A dia.= |
.180 (4.57) |
****.34 |
.126 - 250 |
0.375 |
| B max = |
.028 (.71) |
|
3.2 - 6.4 |
9.500 |
| D nom = |
.093 (2,36) |
****.36 |
.251 - .375 |
0.500 |
| S nom = |
.057 (1,45) |
|
6.4 - 9.5 |
12.700 |
|
|
|
|
|
| 1/8" |
2,4mm |
****.41 |
Up to .062 |
0.212 |
| Hole Size= |
.129 - .133 (3.28 - 3.38) |
|
1.6 - 3.2 |
5.400 |
| A dia.= |
.375 (9.53) |
****.42 |
.063 - .125 |
0.275 |
| B max = |
.065 (1.65) |
|
3.2 - 4.4 |
7.000 |
| D nom = |
.125 (3.18) |
****.43 |
.126 - .187 |
0.337 |
| S nom = |
.076 (1.93) |
|
3.2 - 4.7 |
8.600 |
|
|
****.44 |
.188 - .250 |
0.400 |
|
|
|
4.8 - 6.4 |
10.200 |
|
|
****.45 |
.251 - .312 |
0.462 |
|
|
|
6.4 - 7.9 |
11.700 |
|
|
****.46 |
.313 - .375 |
0.535 |
|
|
|
8.0 - 9.5 |
13.600 |
|
|
****.48 |
.376 - .500 |
0.670 |
|
|
|
9.6 - 12.7 |
17.000 |
|
|
****.410 |
.501 - .625 |
0.805 |
|
|
|
12.8 - 15.9 |
20.400 |
|
|
|
|
|
| 5/32" |
4.0mm |
****.52 |
.020 - .125 |
0.300 |
| Hole Size= |
.160 - .164 (4.06 - 4.17) |
|
.51 - 3.2 |
7.600 |
| A dia.= |
.469 (11.92) |
****.54 |
.126 - .250 |
0.425 |
| B max= |
.075 (1.91) |
|
3.2 - 6.4 |
10.800 |
| D nom = |
.156 (3.96) |
****.56 |
.251 - .375 |
0.550 |
| S nom = |
.095 (2.41) |
|
6.4 - 9.5 |
14.000 |
|
|
****.58 |
.376 - .500 |
0.695 |
|
|
|
9.6 - 12.7 |
17.700 |
|
|
****.510 |
.501 - .625 |
0.830 |
|
|
|
12.8 - 15.9 |
21.000 |
|
|
|
|
|
| 3/16" |
4.8mm |
****.62 |
.020 - .125 |
0.325 |
| Hole Size= |
.192 - .196 (4.88 - 4.98) |
|
.51 - 3.2 |
8.300 |
| A dia.= |
.625 (15.88) |
****.64 |
.126 - .250 |
0.450 |
| B max= |
.092 (2.34) |
|
3.2 - 6.4 |
11.400 |
| D nom = |
.187 (4.75) |
****.66 |
.251 - .375 |
0.575 |
| S nom = |
.114 (2.90) |
|
6.4 - 9.5 |
14.600 |
|
|
****.68 |
.376 - .500 |
0.700 |
|
|
|
9.6 - 12.7 |
17.800 |
|
|
****.610 |
.501 - .625 |
0.850 |
|
|
|
12.8 - 15.9 |
21.600 |
|
|
****.612 |
.626 - .750 |
0.980 |
|
|
|
15.9 - 19.1 |
24.900 |
|
|
****.614 |
.751 - .875 |
1.110 |
|
|
|
19.1 - 22.2 |
28.200 |
|
|
****.616 |
.876 - 1.00 |
1.240 |
|
|
|
22.3 - 25.4 |
31.500 |
|
|
|
|
|
| 1/4" |
6.4mm |
****.82 |
.020 - .125 |
0.375 |
| Hole Size= |
.257 - .261 (6.53 - 6.63) |
|
.51 - 3.2 |
9.500 |
| A dia.= |
.750 (19.05) |
****.84 |
.126 - .250 |
0.500 |
| B max= |
.107 (2.64) |
|
3.2 - 6.4 |
12.700 |
| D nom = |
.250 (6.35) |
****.86 |
.251 - .375 |
0.625 |
| S nom = |
.151 (3.84) |
|
6.4 - 9.5 |
15.900 |
|
|
****.88 |
.376 - .500 |
0.750 |
|
|
|
9.6 - 12.7 |
19.100 |
|
|
****.810 |
.501 - .625 |
0.900 |
|
|
|
12.8 - 15.9 |
22.900 |
|
|
****.812 |
.626 - .750 |
1.030 |
|
|
|
15.9 - 19.1 |
26.200 |
|
|
****.814 |
.751 - .875 |
1.160 |
|
|
|
19.1 - 22.2 |
29.500 |
|
|
****.816 |
.876 - 1.00 |
1.290 |
|
|
|
22.3 - 25.4 |
32.800 |
Back to Top
MATERIAL AND FINISH
Series |
Head Style |
Material |
Finish |
Body |
Stem |
Body |
Stem |
AAPS |
Protruding |
Aluminum |
Aluminum |
Natural |
Natural |
AALS |
Large Flanged |
Steel |
Steel |
Zinc Plate |
Zinc Plate |
AACS |
Countersunk |
Aluminum |
Aluminum |
Natural |
Natural |
BSPS |
Protruding |
Aluminum |
Steel |
Natural |
Zinc Plate |
BSLS |
Large Flanged |
Aluminum |
Steel |
Natural |
Zinc Plate |
BSCS |
Countersunk |
Aluminum |
Steel |
Natural |
Zinc Plate |
SSPS |
Protruding |
Steel |
Steel |
Zinc Plate |
Zinc Plate |
SSLS |
Large Flanged |
Steel |
Steel |
Zinc Plate |
Zinc Plate |
SSCS |
Countersunk |
Steel |
Steel |
Zinc Plate |
Zinc Plate |
CCPS |
Protruding |
Stainless |
Stainless |
Bright |
Bright |
CCLS |
Large Flanged |
Stainless |
Stainless |
Bright |
Bright |
CCCS |
Countersunk |
Stainless |
Stainless |
Bright |
Bright |
CSPS |
Protruding |
Stainless |
Steel |
Bright |
Zinc Plate |
CSLS |
Large Flanged |
Stainless |
Steel |
Bright |
Zinc Plate |
CSCS |
Countersunk |
Stainless |
Steel |
Bright |
Zinc Plate |
MSPS |
Protruding |
Monel |
Steel |
Plain |
Zinc Plate |
MSLS |
Large Flanged |
Monel |
Steel |
Plain |
Zinc Plate |
MSCS |
Countersunk |
Monel |
Steel |
Plain |
Zinc Plate |
USPS |
Protruding |
Copper |
Steel |
Plain |
Zinc Plate |
USLS |
Large Flanged |
Copper |
Steel |
Plain |
Zinc Plate |
USCS |
Countersunk |
Copper |
Steel |
Plain |
Zinc Plate |
Back to Top
SHEAR & TENSILE STRENGTH
Typical Shear and Tensile Data "N" Rivets in lbs. (Newtons)
| Rivet Diameter |
AA Series |
BS Series |
SS Series |
MS Series |
CC Series |
CS Series |
| Shear |
Tensile |
Shear |
Tensile |
Shear |
Tensile |
Shear |
Tensile |
Shear |
Tensile |
Shear |
Tensile |
| 3/32" (2.4mm) |
70 (312) |
80 (356) |
90 (401) |
120 (534) |
130 (579) |
170 (757) |
200 (890) |
250 (1113) |
230 (1024) |
280 (1246) |
230 (1024) |
280 (1246) |
| 1/8" (3.2mm) |
120 (534) |
150 (668) |
170 (757) |
220 (979) |
260 (1157) |
310 (1380) |
350 (1558) |
450 (2003) |
420 (1869) |
530 (2359) |
420 (1869) |
530 (2359) |
| 5/32" (4.0mm) |
190 (846) |
230 (1024) |
260 (1157) |
350 (1558) |
370 (1647) |
470 (2092) |
550 (2448) |
700 (3115) |
650 (2893) |
820 (3649) |
650 (2893) |
820 (3649) |
| 3/16" (4.8mm) |
260 (1157) |
320 (1424) |
380 (1691) |
500 (2225) |
540 (2403) |
680 (3026) |
800 (3564) |
1000 (4450) |
950 (4228) |
1200 5340) |
950 (4228) |
1200 5340) |
| 1/4" (6.3mm) |
460 (2047) |
560 (2492) |
700 (3115) |
920 (4094) |
1000 (4450) |
1240 (5518) |
1400 (6230) |
1850 (8233) |
1700 (7565) |
2100 (9345) |
1700 (7650) |
2100 (9345) |
Back to Top |
