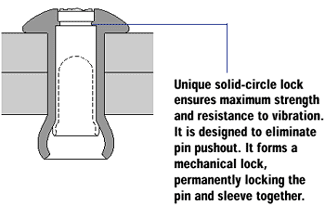

Strong, consistent and reliable. Employing a unique solid-circle lock, the Magna-Lok® fastener structural blind rivet creates an internal lock during installation that virtually eliminates pin pushout.

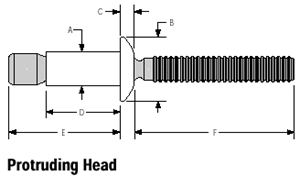

STRUCTURAL BLIND RIVET PROTRUDING HEAD DIMENSIONAL DATA
| Dia.(No.) |
Steel |
Aluminum |
Stainless |
Grip Range |
Hole Size |
A |
B |
C |
D |
E |
F |
| 3/16 (6) | MGLP-R6-4 | MGLP-B6-4 | MGLP-U6-4 | .062 - .270 | .191 - .201 | .188 | .385 | .085 | .415 | .675 | 1.00 | |
| MGLP-R6-7 | MGLP-B6-7 | MGLP-U6-7 | .214 - .437 | .191 - .201 | .188 | .385 | .085 | .572 | .825 | 1.00 | |
| MGLP-R6-E | MGLP-B6-E | | .062 - .437 | .191 - .201 | .188 | .385 | .085 | .572 | .950 | 1.00 | | 1/4 (8) | MGLP-R8-6 | MGLP-B8-6 | MGLP-U8-6 | .080 - .375 | .261 - .272 | .253 | .525 | .117 | .560 | .970 | 1.00 | |
| MGLP-R8-10 | MGLP-B8-10 | MGLP-U8-10 | .350 - .625 | .261 - .272 | .253 | .525 | .117 | .810 | 1.220 | 1.00 | |
| MGLP-R8-E | MGLP-B8-E | | .080 - .625 | .261 - .272 | .253 | .525 | .117 | .810 | 1.405 | 1.00 | | 3/8 (12) | MGLP-R12-12 | MGLP-B12-12 | | .120 - .560 | .392 - .408 | .386 | .787 | .175 | .840 | 1.650 | 1.545 | |
| | | | | | | | | | | |
Back to Top

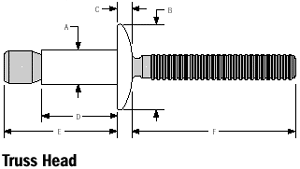

TRUSS HEAD DIMENSIONAL DATA
Dia.(No.) |
Steel |
Aluminum |
Grip Range |
Hole Size |
A |
B |
C |
D |
E |
F |
| 3/16 (6) | MGLT-R6-4 | MGLT-B6-4 | .062 - .270 | .191 - .201 | .187 | .500 | .085 | .415 | .675 | 1.00 | |
| MGLT-R6-7 | MGLT-B6-7 | .214 - .437 | .191 - .201 | .187 | .500 | .085 | .572 | .825 | 1.00 | |
| MGLT-R6-E | MGLT-B6-E | .062 - .437 | .191 - .201 | .187 | .500 | .085 | .572 | .950 | 1.00 | | 1/4 (8) | MGLT-R8-6 | MGLT-B8-6 | .080 - .375 | .261 - .272 | .253 | .588 | .117 | .560 | .970 | 1.00 | | | MGLT-R8-10 | MGLT-B8-10 | .350 - .625 | .261 - .272 | .253 | .588 | .117 | .810 | 1.220 | 1.00 | | | MGLT-R8-E | MGLT-B8-E | .080 - .625 | .261 - .272 | .253 | .588 | .117 | .810 | 1.405 | 1.00 | | | | | | | | | | | | |
Back to Top

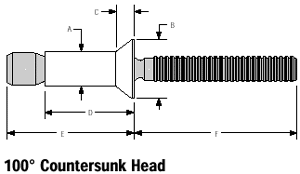

100° COUNTERSUNK DIMENSIONAL DATA
| Dia.(No.) |
Steel |
Aluminum |
Stainless |
Grip Range |
Hole Size |
A |
B |
C |
D |
E |
F |
3/16 (6) |
MGL100-R6-6 |
MGL100-B6-6 |
MGL100-U6-6 |
.125 - .331 |
.191 - .201 |
.188 |
.345 |
.070 |
.486 |
.762 |
1.00 |
|
|
MGL100-R6-9 |
MGL100-B6-9 |
MGL100-U6-9 |
.305 - .500 |
.191 - .201 | .188 | .345 | .070 | .653 | .929 | 1.00 | | 1/4 (8) | MGL100-R8-8 | MGL100-B8-8 | MGL100-U8-8 | .160 - .475 | .261 - .272 | .257 | .405 | .079 | .660 | 1.059 | 1.00 | |
|
MGL100-R8-12 |
MGL100-B8-12 |
MGL100-U8-12 |
.725
.415 |
.261 - .272 |
.257 |
.405 |
.079 |
.910 |
1.309 |
1.00 |
Back to Top
TENSILE STRENGTH DATA
Typical Installed Values in Nominal Grip(lbs.)
|
|
|
|
| StainlessSteel | |
|
| Aluminum | Steel | | 3/16 | Shear | 600 | 1300 | 1300 | |
| Tensile | 500 | 1200 | 950 | |
| Pin Retention | 50 | 150 | 100 | | 1/4 | Shear | 1300 | 2500 | 2350 | |
| Tensile | 890 | 2200 | 1800 | |
| Pin Retention | 100 | 300 | 200 | | 3/8 | Shear | 2950 | 5600 | NA | |
| Tensile | 1900 | 4000 | NA | |
| Pin Retention | 250 | 650 | NA |
| Huck Fastener Material and Finish |
|
|
|
| Sleeve | Pin | | Material | Sleeve | Pin | Finish | Finish | | Steel | Low Carbon Steel | Medium Carbon Steel | Zinc Plated Clear Chromate | Zinc Plated Gold Chromate | | Aluminum | 5056 | 7075 | Clear Chromate | Gold Chromate | | Stainless | 302 | 305/304 | Passivated | Dry Lubricated | | | | | | |
