Huck Fasteners - Lockbolt: HP8®
HUCK's original Grade 8 fastening system, the HP8® PowerBolt, provides an easy-to-use system that delivers a permanent, vibration resistant clamp. These fasteners, available in diameters ranging from 1/2" to 3/4", offer fast, tamper-resistant installation, with only a visual inspection required.
  • Fastener Data

    • Huck Fastening Systems
    PRINT THIS PAGE
    APPLICATION INFO & PRICING

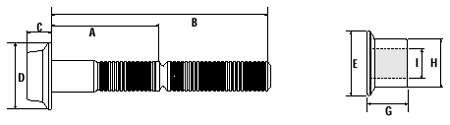

    FASTENER DATA

    1/2" Round Head (DT16)
    Grip No.
    A
    B
    C= .307
    8
    1.625
    3.550
    D= 1.07
    12
    1.875
    3.800
    G= .75
    16
    2.125
    4.050
    H= .812
    20
    2.375
    4.300
    I= .519
    28
    2.875
    4.80
    36
    3.375
    5.300
    44
    3.875
    5.800
    52
    4.375
    6.300
    60
    4.875
    6.800

    5/8" Round Head (DT20)
    Grip No.
    A
    B
    C=.498
    8
    1.820
    4.038
    D= 1.330
    12
    2.070
    4.288
    G= .922
    16
    2.320
    4.538
    H= 1.009
    20
    2.570
    4.788
    I= .645
    28
    3.070
    5.288
    36
    3.570
    5.788
    44
    4.070
    6.288
    52
    4.570
    6.788
    60
    5.070
    7.288
    88
    6.820
    9.038

    3/4" Round Head (DT24)
    Grip No.
    A
    B
    C= .60
    8
    2.000
    4.640
    D= 1.59
    12
    2.250
    4.890
    G= 1.107
    16
    2.500
    5.140
    H= 1.213
    20
    2.750
    5.390
    I= .780
    28
    3.250
    5.890
    32
    3.500
    6.140
    36
    3.750
    6.390
    44
    4.250
    6.890
    52
    4.750
    7.390
    60
    5.250
    7.890
