Avdel Speed Fastening: Chobert

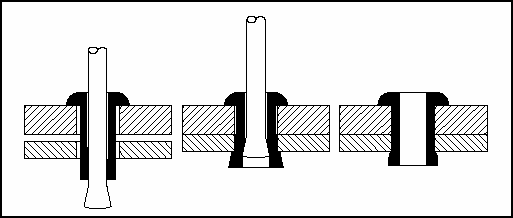

The original speed fastening system used in a wide variety of materials.

Benefits:

  • Controlled Radial Expansion
    A wide range of mandrel sizes enables Chobert® to assemble the most brittle materials without cracking.

  • Tapered Bore
    Internal taper creates greater expansion at the tail of the fastener, allowing joint tightness to be regulated.

  • Multiple Head Styles and Materials
    Chobert® fasteners are available in dome, low-profile and truss head styles, as well as aluminum, steel and brass materials.
  • Dimensional Dome Head
  • Dimensional Low Profile Head
  • Truss Head
  • Undersized Head
  • Shear & Tensile
  • Chobert Mandrels
  • Chobert Nose Assemblies
  • speed fastening system
    PRINT THIS PAGE
    APPLICATION INFO & PRICING

    DIMENSIONAL DOME HEAD


    Series Material Finish
    1121 Steel Zinc
    1125 Aluminum Plain
    1131 Aluminum Plain
    1141 Brass Bright
    1143 Brass Hot Tin
    1162 Aluminum Plain
    1164 Aluminum Plain
    1192 Aluminum
    Multiple Mandrels are available
    See Chobert Mandrel Section


    Diameter Series Grip Range M (max)
    3/32" 1121, 1125, 1131, 1141
    Hole Size=.098-.100
    A dia.=.0935 - .0975
    B nom=.149 - .163
    D max=.025 - .037
    **** - 0304 000. - .062 0.125 Nominal
    Mandrel
    0.072
    **** - 0306 .062 - .125 0.187
    **** - 0308 .125 - .187 0.250
    **** - 0310 .187 - .250 0.312
    **** - 0312 .250 - .312 0.375
    1/8"
    Hole Size= .129 - .132
    A dia.= .1245 - .1280
    B nom= .193 - .217
    D max= .033 - .045
    **** - 0404 000. - .062 0.125 Nominal
    Mandrel
    0.088
    **** - 0406 .062 - .125 0.187
    **** - 0408 .125 - .187 0.250
    **** - 0410 .187 - .250 0.312
    **** - 0412 .250 - .312 0.375
    **** - 0414 .312 - .375 0.437
    **** - 0416 .375 - .437 0.503
    5/32"
    Hole Size= .161 - .164
    A dia.= .1560 - .1590
    B nom= .235 - .257
    D max= .047 - .057
    **** - 0506 .062 - .125 0.187 Nominal
    Mandrel
    0.107
    **** - 0508 .125 - .187 0.250
    **** - 0510 .187 - .250 0.312
    **** - 0512 .250 - .312 0.375
    **** - 0514 .312 - .375 0.437
    **** - 0516 .375 - .437 0.503
    3/16"
    Hole Size= .191 - .194
    A dia.= .1850 - .1910
    B nom= .329 - .349
    D max= .060 - .070
    **** - 0606 .062 - .125 0.187 Nominal
    Mandrel
    0.132
    **** - 0608 .125 - .187 0.250
    **** - 0610 .187 - .250 0.312
    **** - 0612 .250 - .312 0.375
    **** - 0614 .312 - .375 0.437
    **** - 0616 .375 - .437 0.503
    1/4"
    Hole Size= .191 - .194
    A dia.= .1850 - .1910
    B nom= .329 - .349
    D max= .060 - .070
    **** - 0809 .125 - .187 0.281 Nominal
    Mandrel
    0.184
    **** - 0811 .187 - .250 0.344
    **** - 0813 .250 .312 0.406

    Back to Top

    DIMENSIONAL LOW PROFILE HEAD


    Series Material Finish
    1121 Steel Zinc
    1125 Aluminum Plain
    1131 Aluminum Plain
    1141 Brass Bright
    1143 Brass Hot Tin
    1162 Aluminum Plain
    1164 Aluminum Plain
    1192 Aluminum
    Multiple Mandrels are available
    See Chobert Mandrel Section


    Diameter Series Grip Range M (max)
    1/8" 1162
    Hole Size= .129 - .132
    A dia.= .1245 - .1280
    B nom= .243 - .262
    D max= .034 - .041

    Nominal Mandrel is .088
    **** - 0404 000. - .062 0.125
    **** - 0406 .062 - .125 0.187
    **** - 0408 .125 - .187 0.250
    **** - 0410 .187 - .250 0.312
    **** - 0412 .250 - .312 0.375
    **** - 0414 .312 - .375 0.437
    **** - 0416 .375 - .437 0.503

    Back to Top

    TRUSS HEAD


    Series Material Finish
    1192 Aluminum Plain
    Multiple Mandrels are available
    See Chobert Mandrel Section










    Diameter Series Grip Range M (max)
    1/8" 1192
    Hole Size= .129 - .132
    A dia.= .1245 - .1280
    B nom= .193 - .217
    D max= .033 - .045
    **** - 0406 .062 - .125 0.187 Nominal
    Mandrel
    0.088
    **** - 0408 .125 - .187 0.250
    **** - 0410 .187 - .250 0.312
    **** - 0412 .250 - .312 0.375
    **** - 0414 .3112-.375 0.437
    5/32"
    Hole Size= .161 - .164
    A dia.= .1560 - .1590
    B nom= .235 - .257
    D max= .047 - .057
    **** - 0508 .125 - .187 0.250 Nominal
    Mandrel
    0.107
    **** - 0514 .312 - .375 0.437

    Back to Top

    UNDERSIZED HEAD


    Series Material Finish
    1164 Aluminum Plain
    Multiple Mandrels are available
    See Chobert Mandrel Section










    Diameter Series Grip Range M (max)
    1/8"      Undersized 1164
    Hole Size= .120 -.123
    A dia.= .1145 - .1185
    B nom= .243 - .262
    D max= .034 - .041

    Nominal Mandrel is .088

    **** - 0406 .062 - .125 0.187
    **** - 0408 .125 - .187 0.250
    **** - 0410 .187 - .250 0.312
    **** - 0412 .250 - .312 0.375
    **** - 0414 .312 - .375 0.437

    Back to Top



    SHEAR AND TENSILE STRENGTH DATA


    Typical Shear and Tensile Strength (lbs.)


    Rivet Diam. Series 1121 Series 1125 Series 1131 Series 1141 & 1143 Series 1162 Series 1164 Series 1192
    Shear 3/32"

    97 170


    Tensile


    97



    Shear 1/8" 258 140
    290 140 129 140
    Tensile
    373 225

    225 207 225
    Shear 5/32" 433 220



    220
    Tensile
    650 365



    365
    Shear 3/16" 588 320




    Tensile
    852 515




    Shear 1/4" 1140
    170



    Tensile
    1198
    268.000



    Back to Top



    CHOBERT MANDRELS


    Rivet Diam. Hole Size Mandrel Head Desc. Spring P/N Long or Curved Spring P/N Regular Mandrel P/N Short Reach Mandrels P/N
    Long or Curved Mandrel P/N Regular Length Long or Curved
    3/32" 0.098 0.072 Standard 7150-6803 7150-7803 7150-6003 7150-7003 7150-8003 7150-9003
    0.100 0.074 #1 O.S. 7150-6803 7150-7803 7150-6103


    0.102 0.076 #2 O.S. 7150-6803 7150-7803 7150-6203 7150-7103 7150-8103 7150-9103
    1/8" 0.128 0.088 Standard 7150-6804 7150-7804 7150-6004 7150-7004 7150-8004 7150-9004
    0.133 0.092 #1 O.S. 7150-6804 7150-7804 7150-6104 7150-7104 7150-8104 7150-9104
    0.140 0.098 #2 O.S. 7150-6804 7150-7804 7150-6204 7150-7204 7150-8204 7150-9204
    0.144 0.102 #3 O.S. 7150-6804 7150-7804 7150-6304 7150-7304 7150-8304 7150-9304
    5/32" 0.161 0.107 Standard 7150-6805 7150-7805 7150-6005 7150-7005 7150-8005 7150-9005
    0.169 0.115 #1 O.S. 7150-6805 7150-7805 7150-6105 7150-7105 7150-8105 7150-9105
    0.176 0.122 #2 O.S. 7150-6805 7150-7805 7150-6205 7150-7205 7150-8205 7150-9205
    0.186 0.132 #3 O.S. 7150-6805 7150-7805 7150-6305 7150-7305 7150-8305 7150-9305
    3/16" 0.193 0.132 Standard 7150-6806 7150-7806 7150-6006 7150-7006 7150-8006 7150-9006
    0.208 0.146 #1 O.S. 7150-6806 7150-7806 7150-6106 7150-7106 7150-8106 7150-9106
    0.218 0.156 #2 O.S. 7150-6806 7150-7806 7150-6206 7150-7206 7150-8206 7150-9206
    1/4" 0.257 0.184 Standard 7150-6808 7150-7808 7150-6008 7150-7008 7150-8008 7150-9008
    0.269 0.196 #1 O.S. 7150-6808 7150-7808 7150-6108 7150-7108 7150-8108 7150-9108

    Back to Top



    CHOBERT NOSE ASSEMBLIES


    Chobert Nose Equipment:

    Diam. Jaw Type Part Number B dim. D dim. E dim.
    3/32" Std. Flat 7150-3003 0.36 1.30 0.16
    Std. Tapered 7170-3103 0.36 1.30 0.16
    Std. Flat Cam Operated 7170-4500 0.36 1.30 0.16
    Long Flat 7150-4003 0.41 2.3 0.16
    Long Curved Flat 7150-5003 0.41 2.28 0.16
    Std. Ltd. Access Cam Op. 7177-3003 0.2 1.18 0.18
    Std. Ltd. Acc. Redcd. Dia. 7274-1000 0.22 1.07 0.18
    1/8" Std. Flat 7150-3004 0.41 1.18 0.20
    Std. Tapered 7170-3104 0.41 1.18 0.20
    Std. Flat Cam Operated 7170-4600 0.41 1.18 0.20
    Long Flat 7150-4004 0.41 1.18 0.20
    Long Curved Flat 7150-5004 0.41 2.12 0.20
    Std. Ltd. Access Cam Op. 7170-5000 0.41 2.18 0.20
    5/32" Std. Flat 7150-3005 0.48 1.30 0.24
    Std. Tapered 7170-3105 0.44 1.30 0.24
    Std. Flat Cam Operated 7170-4700 0.48 1.30 0.24
    Long Flat 7150-4005 0.48 2.30 0.24
    Long Curved Flat 7150-5005 0.48 2.23 0.24
    Std. Ltd. Access Cam Op. 7170-5100 0.48 2.30 0.24
    3/16" Std. Flat 7150-3006 0.56 1.18 0.33
    Std. Tapered 7150-3106 0.56 1.18 0.33
    Std. Flat Cam Operated 7170-4800 0.56 1.18 0.33
    Long Flat 7150-4006 0.56 2.30 0.33
    Long Curved Flat 7150-5006 0.56 2.22 0.33
    Std. Ltd. Access Cam Op. 7170-5200 0.56 2.30 0.33
    1/4" Std. Flat 7150-3008 0.64 1.18 0.39
    Long Flat 7150-4008 0.64 2.18 0.39

    Back to Top
