AVINOX® II Fastening System
All-stainless steel bulbing breakstem rivet. Ideal for use in corrosive or adverse
environmental conditions. Good clamp-up provides tight and secure joint without
crushing parent material.
Benefits:
- All-Stainless Steel
For use in corrosive or adverse environmental conditions.

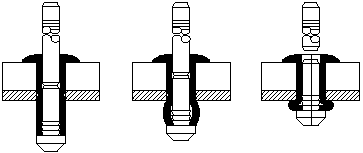

- Bulbing Tail Formation
Large bearing surface is ideal when thin backside material is part of the
assembly. Pull-out is increased and thin material is not deformed.
- Positively
Locked Stem
High clamp-up and positive stem retention ensures a vibration-resistant
joint.
LOW PROFILE HEAD
| Diameter |
|
|
Steel |
Grip Range |
M (max) |
| 1/8" |
3.2mm |
|
BE61-0408 |
.039-.118 |
0.350 |
| Hole Size= |
.130-.134 (3.10-3.30) |
|
|
1.0-3.0 |
8.700 |
| A dia.= |
.122-130 (3.10-3.30) |
|
BE61-0411 |
.118-.197 |
0.450 |
| B nom= |
.248 (6.30) |
|
|
3.0-5.0 |
11.400 |
| D max= |
.043 (1.10) |
|
BE61-0414 |
.197-.276 |
0.540 |
| E max= |
.083 (2.10) |
|
|
5.0-7.0 |
13.600 |
| 5/32" |
4.0mm |
|
BE61-0509 |
.039-.118 |
0.400 |
| Hole Size= |
.161-.169 (4.10-4.30) |
|
|
1.0-3.0 |
10.160 |
| A dia.= |
.153-.160 (3.90-4.06) |
|
BE61-0512 |
.118-.197 |
0.480 |
| B nom= |
.303 (7.70) |
|
|
3.0-5.0 |
12.100 |
| D max= |
.059 (1.50) |
|
BE61-0516 |
.197-.276 |
0.600 |
| E max= |
.102 (2.60) |
|
|
5.0-7.0 |
15.100 |
| 3/16" |
4.8mm |
|
BE61-0611 |
.059-.138 |
0.510 |
| Hole Size= |
.193-.201 (4.90-5.10) |
|
|
1.5-3.5 |
12.900 |
| A dia.= |
.183-.191 (4.65-4.85) |
|
BE61-0614 |
.138-.236 |
0.610 |
| B nom= |
.336 (9.30) |
|
|
3.5-6.0 |
15.500 |
| D max= |
.059 (1.50) |
|
BE61-0618 |
.236-.335 |
0.730 |
| E max= |
.126 (3.20) |
|
|
6.0-8.5 |
18.500 |
Back to Top
Shear and Tensile Strength
Minimum Shear and Tensile Data Avinox II Stainless Steel in lbs. (Newtons)
| Rivet Diameter |
Part No. |
Shear |
Tensile |
| Stem in Shear Plane |
Stem not in Shear Plane |
| 1/8" 3.2mm |
BE61-0408 |
360 (1600) |
360 (1600) |
450 (2000) |
| BE61-0411 |
382 (1700) |
| BE61-0414 |
719 (3200) |
| 5/32" 4.0mm |
BE61-0509 |
1169 (5200) |
416 (1850) |
629 (2800) |
| BE61-0512 |
| BE61-0516 |
| 3/16" 4.8mm |
BE61-0611 |
1236 (5500) |
742 (3300) |
854 (3800) |
| BE61-0614 |
| BE61-0618 |
Back to Top
MATERIALS & FINISH
| Series |
Head Style |
Material |
Finish |
| Body |
Mandrel |
Body |
Mandrel |
| BE61 |
Low Profile |
Stainless Steel |
Stainless Steel |
Natural |
Natural |
