AVIBULB® Fastening System

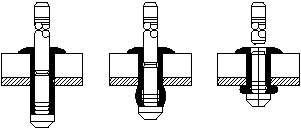

All-steel bulbing breakstem rivet. Excellent clamp-up and superior shear and
tensile strength result in a vibration resistant joint. Smooth bulb formation
is ideal for thin backside material.
Benefits:
- All-Steel Construction
Provides extremely high shear and tensile strengths.
- Bulbing Tail Formation
Large bearing surface is ideal when thin backside material is part of the
assembly. Pull-out is increased and thin material is not deformed.
- Positively
Locked Stem
High clamp-up and positive stem retention ensures a vibration resistant
joint.
LOW PROFILE HEAD
| Diameter |
|
|
Steel |
Grip Range |
M (max) |
| 1/8" |
3.2mm |
|
BN01-0408 |
.039-.118 |
0.343 |
| Hole Size= |
.130-.134 (3.10-3.30) |
|
|
1.0-3.0 |
8.700 |
| A dia.= |
.122-130 (3.10-3.30) |
|
BN01-0411 |
.118-.197 |
0.445 |
| B nom= |
.248 (6.30) |
|
|
3.0-5.0 |
11.300 |
| D max= |
.055 (1.40) |
|
BN01-0414 |
.197-.276 |
0.535 |
| E max= |
.083 (2.10) |
|
|
5.0-7.0 |
13.600 |
| 5/32" |
4.0mm |
|
BN01-0509 |
.039-.118 |
0.400 |
| Hole Size= |
.161-.169 (4.10-4.30) |
|
|
1.0-3.0 |
10.160 |
| A dia.= |
.153-.160 (3.90-4.06) |
|
BN01-0512 |
.118-.197 |
0.480 |
| B nom= |
.303 (7.70) |
|
|
3.0-5.0 |
12.100 |
| D max= |
.059 (1.50) |
|
BN01-0516 |
.197-.276 |
0.600 |
| E max= |
.102 (2.60) |
|
|
5.0-7.0 |
15.100 |
| 3/16" |
4.8mm |
|
BN01-0611 |
.059-.138 |
0.480 |
| Hole Size= |
.193-.201 (4.90-5.10) |
|
|
1.5-3.5 |
12.100 |
| A dia.= |
.185-.192 (4.70-4.87) |
|
BN01-0614 |
.138-.236 |
0.580 |
| B nom= |
.336 (9.30) |
|
|
3.5-6.0 |
14.600 |
| D max= |
.059 (1.50) |
|
BN01-0618 |
.236-.335 |
0.700 |
| E max= |
.126 (3.20) |
|
|
6.0-8.5 |
17.600 |
Back to Top
Shear and Tensile Strength
| Rivet Diameter |
Part No. |
Shear |
Tensile |
| Stem in Shear Plane |
Stem not in Shear Plane |
| 1/8" 3.2mm |
BN01-0408 |
270 (1200) |
N/A |
310 (1380) |
| BN01-0411 |
393 (1750) |
| BN01-0414 |
562 (2500) |
| 5/32" 4.0mm |
BN01-0509 |
539 (2400) |
416 (1850) |
629 (2800) |
| BN01-0512 |
787 (3500) |
| BN01-0516 |
921 (4100) |
| 3/16" 4.8mm |
BN01-0611 |
809 (3600) |
742 (3300) |
854 (3800) |
| BN01-0614 |
944 (4200) |
| BN01-0618 |
1258 (5600) |
Back to Top
MATERIALS & FINISH
| Series |
Head Style |
Material |
Finish |
| Body |
Mandrel |
Body |
Mandrel |
| BN01 |
Low Profile |
Steel |
Steel |
Zinc Yellow Dichromate |
Zinc Yellow Dichromate |
Back to Top |
