AVEX® Fastening System

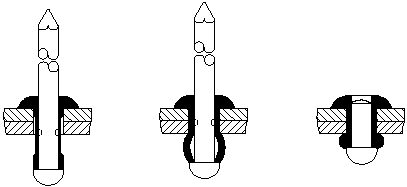

The AVEX fastening system is the original multi-grip blind breakstem rivet. Positive stem retention, complete hole
fill and wide grip range are some of the unique benefits offered.
Benefits:
- Wide Grip Range
One rivet can be used in multiple material thicknesses. This
reduces inventories and eliminates operator error. - Mechanically Locked Stem
Stem is locked in shell, eliminating the risk of mandrel head
vibrating loose while providing a weather resistant joint.
- Complete Hole Fill
The bulbing formation of the Avex® will fill slightly oversized
or irregular holes, providing increased strength and vibration
resistance.
LO-PROFILE HEAD
| Diameter |
|
|
Series |
Grip Range |
M (max) |
| 1/8" |
3.2mm |
|
1661-0410 |
|
.031-.187 |
0.410 |
| Hole Size= |
.132-.138 (3.35-3.51) |
|
|
|
.790-4.75 |
10.410 |
| A dia.= |
.121-.125 (3.07-3.17) |
|
1661-0414 |
|
.125-.312 |
0.530 |
| B nom= |
.252 (6.40) |
|
|
|
3.10-7.92 |
13.460 |
| D max= |
.051 (1.30) |
|
1661-0416 |
|
.187-.375 |
0.590 |
| E max= |
.074 (1.87) |
|
|
|
4.75-9.53 |
14.990 |
|
|
|
|
|
|
|
| 5/32" |
4.0mm |
|
1661-0512 |
|
.046-.250 |
0.480 |
| Hole Size |
.161-.166 (4.09-4.22) |
|
|
|
(1.17-6.35) |
12.190 |
| A dia.= |
.155-.160 (3.95-4.06) |
|
1661-0514 |
|
.125-.312 |
0.540 |
| B nom= |
.311 (7.90) |
|
|
|
3.10-7.92 |
13.720 |
| D max= |
.061 (1.55) |
|
1661-0516 |
|
.156-.375 |
0.610 |
| E max= |
.090 (2.27) |
|
|
|
4.00-9.53 |
15.490 |
|
|
|
|
|
|
|
| 3/16" |
4.8mm |
|
1661-0613 |
1663-0613 |
.062-.250 |
0.550 |
| Hole Size= |
.194-.201 (4.93-5.05) |
|
|
|
1.57-6.35 |
13.970 |
| A dia.= |
.185-.190 (4.71-4.83) |
|
1661-0619 |
1663-0619 |
.187-.437 |
0.730 |
| B nom= |
.387 (9.80) |
|
|
|
4.75-11.10 |
18.540 |
| D max= |
.071 (1.80) |
|
1661-0621 |
1663-0621 |
.250-.500 |
0.780 |
| E max= |
.112 (2.83) |
|
|
|
6.35-12.70 |
19.810 |
|
|
|
1661-0631 |
1663-0631 |
.500-.781 |
1.090 |
|
|
|
|
|
12.70-19.84 |
27.690 |
|
|
|
|
|
|
|
| 1/4" |
6.3mm |
|
1610-4506 |
|
.080-.325 |
0.660 |
| Hole Size= |
.261-.275 (6.63-6.99) |
|
|
|
2.03-8.26 |
16.760 |
| A dia.= |
.250-.260 (6.35-6.60) |
|
|
|
|
|
| B nom= |
.515 (13.10) |
|
|
|
|
|
| D max= |
.105 (2.67) |
|
|
|
|
|
| E max= |
.158 (4.01) |
|
|
|
|
|
Back to Top
LARGE FLANGED HEAD
| Diameter |
|
|
Series |
Grip Range |
M (max) |
| 1/8" |
3.2mm |
|
1641-0410 |
|
.031-.187 |
0.410 |
| Hole Size= |
.132-.138 (3.35-3.51) |
|
|
|
.790-4.75 |
10.410 |
| A dia.= |
.121-.125 (3.07-3.17) |
|
1641-0414 |
|
.125-.312 |
0.530 |
| B nom= |
.325 (8.25) |
|
|
|
3.10-7.92 |
13.460 |
| D max= |
045 (1.14) |
|
|
|
|
|
| E max= |
.074 (1.87) |
|
|
|
|
|
|
|
|
|
|
|
|
| 5/32" |
4.0mm |
|
1641-0514 |
|
.125-.312 |
0.540 |
| Hole Size |
.161-.166 (4.09-4.22) |
|
|
|
3.10-7.92 |
13.720 |
| A dia.= |
.155-.160 (3.95-4.06) |
|
|
|
|
|
| B nom= |
.375 (9.52) |
|
|
|
|
|
| D max= |
.058 (1.47) |
|
|
|
|
|
| E max= |
.090 (2.27) |
|
|
|
|
|
| 3/16" |
4.8mm |
|
1641-0613 |
1643-0613 |
.062-.250 |
0.550 |
| Hole Size= |
.194-.201 (4.93-5.05) |
|
|
|
1.57-6.35 |
13.970 |
| A dia.= |
.185-.190 (4.71-4.83) |
|
1641-0621 |
1643-0621 |
.250-.500 |
0.780 |
| B nom= |
.625 (15.88) |
|
|
|
6.35-12.70 |
19.810 |
| D max= |
.075 (1.90) |
|
1641-0631 |
1643-0631 |
.500-.781 |
1.090 |
| E max= |
.112 (2.83) |
|
|
|
12.70-19.84 |
27.690 |
Back to Top
BRAZIER HEAD
| Diameter |
|
|
Series |
Grip Range |
M (max) |
| 3/16" |
4.8mm |
|
1610-3722 |
|
.062-.250 |
0.550 |
| Hole Size= |
.194-.201 (4.93-5.05) |
|
|
|
1.57-6.35 |
13.970 |
| A dia.= |
.185-.190 (4.71-4.83) |
|
1610-3716 |
|
.187-.437 |
0.730 |
| B nom= |
.472 (12.00) |
|
|
|
4.75-11.10 |
18.540 |
| D max= |
.098 (2.49) |
|
|
|
|
|
| E max= |
.112 (2.83) |
|
|
|
|
|
Back to Top
COUNTERSUNK HEAD
| Diameter |
|
|
Series |
Grip Range |
M (max) |
| 1/8" |
3.2mm |
|
1604-0412 |
|
.093-.250 |
0.470 |
| Hole Size= |
.132-.138 (3.35-3.51) |
|
|
|
2.36-6.35 |
11.940 |
| A dia.= |
.121-.125 (3.07-3.17) |
|
1604-0414 |
|
.155-.312 |
0.530 |
| B nom= |
.207 (5.27) |
|
|
|
3.94-7.92 |
13.460 |
| D max= |
.050 (1.27) |
|
1604-0416 |
|
.217-.375 |
0.600 |
| E max= |
.074 (1.87) |
|
|
|
5.51-9.53 |
15.240 |
| 5/32" |
4.0mm |
|
1604-0514 |
|
.109-312 |
0.550 |
| Hole Size |
.161-.166 (4.09-4.22) |
|
|
|
2.77-7.92 |
13.970 |
| A dia.= |
.155-.160 (3.95-4.06) |
|
1604-0516 |
|
.171-.375 |
0.610 |
| B nom= |
.247 (6.28) |
|
|
|
4.34-9.53 |
15.490 |
| D max= |
.052 (1.32) |
|
|
|
|
|
| E max= |
.090 (2.27) |
|
|
|
|
|
| 3/16" |
4.8mm |
|
1604-0615 |
|
.125-.312 |
0.610 |
| Hole Size= |
.194-.201 (4.93-5.05) |
|
|
|
3.18-7.72 |
15.490 |
| A dia.= |
.185-.190 (4.71-4.83) |
|
1604-0621 |
|
.250-.500 |
0.800 |
| B nom= |
.347 (8.81) |
|
|
|
6.35-12.70 |
20.320 |
| D max= |
.069 (1.75) |
|
|
|
|
|
| E max= |
.112 (2.83) |
|
|
|
|
|
Back to Top
SHEAR & TENSILE STRENGTH DATA
Typical Shear and Tensile Data Avex Fasteners
| Rivet Diameter |
Series 1610 Aluminum |
Series 1661 / 1641 |
Series 1604 |
| Shear |
Tensile |
Shear |
Tensile |
Shear |
Tensile |
| 1/8" (3.2mm) |
|
|
|
165 (735) |
230 (1025) |
155 (690) |
205 (910) |
| 5/32" (4.0mm) |
|
|
|
255 (1135) |
375 (1670) |
225 (1000) |
300 (1335) |
| 3/16" (4.8mm) |
340 (1512) |
505 (2246) |
350 (1535) |
530 (2335) |
350 (1555) |
530 (2355) |
| 1/4" (6.3mm) |
Stem in
Shear Plane
700 (3110) |
Stem Outside
Plane
400 (1780) |
560 (2490) |
|
|
|
|
Back to Top
MATERIALS & FINISH
| Series |
Head Style |
Material |
Finish |
| Body |
Mandrel |
Body |
Mandrel |
| 1604 |
Countersunk |
Aluminum |
Steel |
Plain |
Zinc |
| 1610 |
Brazier |
Aluminum |
Steel |
Plain |
Zinc |
| 1641 |
Large Flanged |
Aluminum |
Steel |
Plain |
Zinc |
| 1643 |
Large Flanged |
Aluminum |
400 Stainless |
Plain |
Plain |
| 1661 |
Lo Profile |
Aluminum |
Steel |
Plain |
Zinc |
| 1663 |
Lo Profile |
Aluminum |
400 Stainless |
Plain |
Plain |
Back to Top |
