Atlas: SpinTite® Blind Threaded Inserts

TYPE AEO - THIN-WALL LOW PROFILE HEAD SERIES

Benefits:

  • Features a low profile head design.
  • Achieves flush installations with no need for countersink
    drilling or dimpling of the parent material.
  • Dimensions
    		•
  • Material & Finish Specs
    		•
  • Part Number Designation
    		•

    Atlas blind threaded inserts

    PRINT THIS PAGE
    APPLICATION INFO & PRICING

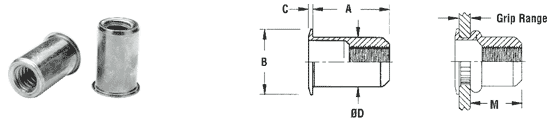

    DIMENSIONS

    All dimensions are in inches.
    Thread Size
    Part Number
    Grip Range
    Open End
    Hole Size in Sheet +.006 -.000
    A
    B
    C
    D
    M
    ±0.015
    ±0.015
    Nom.
    Max.
    Ref.
    #6-32
    AEOS-632-80
    .020 - .080
    0.385
    0.295
    0.018
    0.249
    0.315
    0.250
    #8-32
    AEOS-832-80
    .020 - .080
    0.385
    0.295
    0.018
    0.249
    0.315
    0.250
    #10-24
    AEOS-1024-130
    .020 -.130
    0.440
    0.320
    0.020
    0.280
    0.330
    0.281
    #10-32
    AEOS-1032-130
    .020 - .130
    0.440
    0.320
    0.020
    0.280
    0.330
    0.281
    1/4-20
    AEOS-420-165
    .030 - .165
    0.580
    0.425
    0.022
    0.374
    0.440
    0.375
    1/4-20
    AEOS-428-165
    .030 - .165
    0.580
    0.425
    0.022
    0.374
    0.440
    0.375
    5/16-18
    AEOS-518-200
    .040 - .200
    0.690
    0.560
    0.022
    0.499
    0.540
    0.500
    5/16-18
    AEOS-524-200
    .040 - .200
    0.690
    0.560
    0.022
    0.499
    0.540
    0.500
    3/8-16
    AEOS-616-200
    .040 - .200
    0.690
    0.560
    0.022
    0.499
    0.540
    0.500
    3/8-16
    AEOS-624-200
    .040 - .200
    0.690
    0.560
    0.022
    0.499
    0.540
    0.500

    All dimensions are in millimeters.
    Thread Size X Pitch
    Part Number
    Grip Range
    Open End
    Hole Size
    in Sheet
    +0.15
    A
    B
    C
    D
    M
    ±0.38
    ±0.38
    Nom.
    Max.
    Ref.
    M4 x 0.7
    AEOS-470-2.0
    0.5 - 2.0
    9.780
    7.490
    0.460
    6.320
    8.000
    6.400
    M5 x 0.8
    AEOS-580-3.3
    .5 - 3.3
    11.180
    8.130
    0.510
    7.110
    8.380
    7.200
    M6 x 1
    AEOS-610-4.2
    .76 - 4.2
    14.730
    10.800
    0.560
    9.500
    11.180
    9.600
    M8 x 1.25
    AEOS-8125-5.1
    .102 - 5.1
    17.530
    14.220
    0.560
    12.670
    13.720
    12.700
    M10 x 1.5
    AEOS-1015-5.1
    .102 - 5.1
    17.530
    14.220
    0.560
    12.670
    13.720
    12.700

    Back to Top


    MATERIAL AND FINISH SPECS

    Type
    Material
    Standard Finish
    AEO
    Steel, C-1008 or C-1010, or Equivalent
    Zinc Plate per ASTM B 633, Fe/Zn 8, Type II



    Back to Top


    PART NUMBER DESIGNATION

    AEO
    S
    –
    632
    –
    80
    Type
    Material
    Thread
    Max.
    Code
    Grip


    Back to Top
