Atlas: SpinTite® Blind Threaded Inserts

TYPE AEL - LOW PROFILE HEAD SERIES

Benefits:

  • Features a large diameter, low-profile head and knurled shank.
  • Offers highest all around strength.
  • Dimensions
    		•
  • Material & Finish Specs
    		•
  • Part Number Designation
    		•

    Atlas blind threaded inserts

    PRINT THIS PAGE
    APPLICATION INFO & PRICING

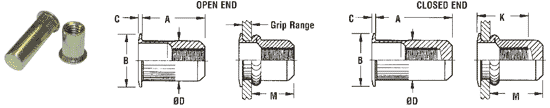

    DIMENSIONS

    All dimensions are in inches.
    Thread
    Size
    Part
    Number
    Grip
    Range
    Open End
    Closed End
    Hole Size in Sheet
    +.006 -.000
    A
    B
    C
    D
    M
    A
    B
    C
    D
    K
    M
    ±0.015
    ±0.015
    Nom.
    Max.
    Ref.
    ±0.015
    ±0.015
    Nom.
    Max.
    Min.
    Ref.
    #6-32
    AELS-632-80
    .020 - .080
    0.420
    0.390
    0.030
    0.265
    0.305
    0.740
    0.390
    0.030
    0.265
    0.430
    0.640
    0.266
    #6-32
    AELS-632-130
    .080 -.130
    0.470
    0.390
    0.030
    0.265
    0.305
    0.740
    0.390
    0.030
    0.265
    0.430
    0.580
    0.266
    #8-32
    AELS-832-80
    .020 - .080
    0.420
    0.390
    0.030
    0.265
    0.305
    0.740
    0.390
    0.030
    0.265
    0.430
    0.640
    0.266
    #8-32
    AELS-832-130
    .080 -.130
    0.470
    0.390
    0.030
    0.265
    0.305
    0.740
    0.390
    0.030
    0.265
    0.430
    0.580
    0.266
    #10-32
    AELS-1032-130
    .020 -.130
    0.475
    0.415
    0.030
    0.296
    0.315
    0.990
    0.415
    0.030
    0.296
    0.580
    0.845
    0.297
    #10-32
    AELS-1032-225
    .130 - .225
    0.585
    0.415
    0.030
    0.296
    0.315
    0.990
    0.415
    0.030
    0.296
    0.580
    0.735
    0.297
    1/4-20
    AELS-420-165
    .027 - .165
    0.580
    0.500
    0.030
    0.390
    0.380
    1.190
    0.500
    0.030
    0.390
    0.700
    1.005
    0.391
    1/4-20
    AELS-420-260
    .165 - .260
    0.680
    0.500
    0.030
    0.390
    0.380
    1.190
    0.500
    0.030
    0.390
    0.700
    0.905
    0.391
    5/16-18
    AELS-518-150
    .027 - .150
    0.690
    0.685
    0.035
    0.530
    0.470
    1.390
    0.685
    0.035
    0.530
    0.830
    1.175
    0.531
    5/16-18
    AELS-518-312
    .150 - .312
    0.805
    0.685
    0.035
    0.530
    0.425
    1.390
    0.685
    0.035
    0.530
    0.830
    1.025
    0.531
    3/8-16
    AELS-616-150
    .027 - .150
    0.690
    0.685
    0.035
    0.530
    0.470
    1.390
    0.685
    0.035
    0.530
    0.830
    1.175
    0.531
    3/8-16
    AELS-616-312
    .150 - .312
    0.805
    0.685
    0.035
    0.530
    0.425
    1.390
    0.685
    0.035
    0.530
    0.830
    1.025
    0.531
    1/2-13
    AELS-813-200
    .063 - .200
    1.150
    0.865
    0.047
    0.685
    0.850
    NA
    NA
    NA
    NA
    NA
    NA
    0.688
    1/2-13
    AELS-813-350
    .200 - .350
    1.300
    0.865
    0.047
    0.685
    0.850
    NA
    NA
    NA
    NA
    NA
    NA
    0.688
    1/2-13
    AELS-813-500
    .350 - .500
    1.450
    0.865
    0.047
    0.685
    0.850
    NA
    NA
    NA
    NA
    NA
    NA
    0.688

    All dimensions are in millimeters.
    Thread
    Size X Pitch
    Part
    Number
    Grip
    Range
    Open End
    Closed End

    Hole Size
    in Sheet +0.15
    A
    B
    C
    D
    M
    A
    B
    C
    D
    K
    M
    ±0.38
    ±0.38
    Nom.
    Max.
    Ref.
    ±0.38
    ±0.38
    Nom.
    Max.
    Min.
    Ref.
    M4 x 0.7
    AELS-470-2.0
    0.5 - 2.0
    10.670
    9.910
    0.760
    6.730
    7.750
    18.800
    9.910
    0.760
    6.730
    11.600
    16.260
    6.750
    M4 x 0.7
    AELS-470-3.3
    2.0 - 3.3
    11.940
    9.910
    0.760
    6.730
    7.750
    18.080
    9.910
    0.760
    6.730
    11.600
    14.730
    6.750
    M5 x 0.8
    AELS-580-3.3
    .5 - 3.3
    12.070
    10.540
    0.760
    6.730
    8.000
    25.150
    10.540
    0.760
    6.730
    15.600
    21.460
    7.600
    M5 x 0.8
    AELS-580-5.7
    3.3 - 5.7
    14.860
    10.540
    0.760
    6.730
    8.000
    25.150
    10.540
    0.760
    6.730
    15.600
    18.670
    7.600
    M6 x 1
    AELS-610-4.2
    .7 - 4.2
    14.730
    12.700
    0.760
    9.910
    9.650
    30.230
    12.700
    0.760
    9.910
    17.500
    25.530
    10.000
    M6 x 1
    AELS-610-6.6
    4.2 - 6.6
    17.270
    12.700
    0.760
    9.910
    9.650
    30.230
    12.700
    0.760
    9.910
    17.500
    22.990
    10.000
    M8 x 1.25
    AELS-8125-3.8
    .7 - 3.8
    17.530
    17.400
    0.890
    13.460
    11.940
    35.310
    17.400
    0.890
    13.460
    20.200
    29.850
    13.500
    M8 x 1.25
    AELS-8125-7.9
    3.8 - 7.9
    20.450
    17.400
    0.890
    13.460
    10.800
    35.310
    17.400
    0.890
    13.460
    20.200
    26.040
    13.500
    M10 x 1.5
    AELS-1015-3.8
    .7 - 3.8
    17.530
    17.400
    0.890
    13.460
    11.940
    35.310
    17.400
    0.890
    13.460
    20.800
    29.850
    13.500
    M10 x 1.5
    AELS-1015-7.9
    3.8 - 7.9
    20.450
    17.400
    0.890
    13.460
    10.800
    35.310
    17.400
    0.890
    13.460
    20.800
    26.040
    13.500

    Back to Top


    MATERIAL AND FINISH SPECS

    Type
    Material
    Standard Finish
    AEL
    Steel, C-1008 or C-1010, or Equivalent
    Zinc Plate per ASTM B 633, Fe/Zn 8, Type II



    Back to Top


    PART NUMBER DESIGNATION



    AEL
    S
    –
    632
    –
    80
    B
    Type
    Material
    Thread
    Code
    Max. Grip
    Closed End Designation
