Atlas: SpinTite® Blind Threaded Inserts


TYPE AEK - MINIMIZED PROFILE HEAD SERIES

Benefits:

  • Same as the AEL but with minimized profile head.
  • Allows near-flush installations with no need for special
    hole preparations such as countersinking or dimpling.
  • Dimensions
  • Material & Finish Specs
  • Part Number Designation
  • Atlas blind threaded inserts

    PRINT THIS PAGE
    APPLICATION INFO & PRICING

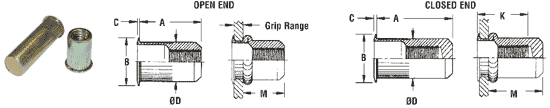

    DIMENSIONS


    All dimensions are in inches.
    Thread Size
    Part Number
    Grip Range
    Open End
    Closed End
    Hole Size in Sheet
    +.006 -.000
    A
    B
    C
    D
    M
    A
    B
    C
    D
    K
    M
    ±0.015
    ±0.015
    Nom.
    Max.
    Ref.
    ±0.015
    ±0.015
    Nom.
    Max.
    Min.
    Ref.
    #6-32
    AEKS-632-80
    .020 - .080
    0.420
    0.310
    0.019
    0.265
    0.305
    0.740
    0.310
    0.019
    0.265
    0.430
    0.640
    0.266
    #6-32
    AEKS-632-130
    .080 -.130
    0.470
    0.310
    0.019
    0.265
    0.305
    0.740
    0.310
    0.019
    0.265
    0.430
    0.580
    0.266
    #8-32
    AEKS-832-80
    .020 - .080
    0.420
    0.310
    0.019
    0.265
    0.305
    0.740
    0.310
    0.019
    0.265
    0.430
    0.640
    0.266
    #8-32
    AEKS-832-130
    .080 -.130
    0.470
    0.310
    0.019
    0.265
    0.305
    0.740
    0.310
    0.019
    0.265
    0.430
    0.580
    0.266
    #10-32
    AEKS-1032-130
    .020 -.130
    0.475
    0.340
    0.019
    0.296
    0.315
    0.990
    0.340
    0.019
    0.296
    0.580
    0.845
    0.297
    #10-32
    AEKS-1032-225
    .130 - .225
    0.585
    0.340
    0.019
    0.296
    0.315
    0.990
    0.340
    0.019
    0.296
    0.580
    0.735
    0.297
    1/4-20
    AEKS-420-165
    .027 - .165
    0.580
    0.455
    0.022
    0.390
    0.380
    1.190
    0.455
    0.022
    0.390
    0.700
    1.005
    0.391
    1/4-20
    AEKS-420-260
    .165 - .260
    0.680
    0.455
    0.022
    0.390
    0.380
    1.190
    0.455
    0.022
    0.390
    0.700
    0.905
    0.391
    5/16-18
    AEKS-518-150
    .027 - .150
    0.690
    0.595
    0.022
    0.530
    0.470
    1.390
    0.595
    0.022
    0.530
    0.830
    1.175
    0.531
    5/16-18
    AEKS-518-312
    .150 - .312
    0.805
    0.595
    0.022
    0.530
    0.425
    1.390
    0.595
    0.022
    0.530
    0.830
    1.025
    0.531
    3/8-16
    AEKS-616-150
    .027 - .150
    0.690
    0.595
    0.022
    0.530
    0.470
    1.390
    0.595
    0.022
    0.530
    0.830
    1.175
    0.531
    3/8-16
    AEKS-616-312
    .150 - .312
    0.805
    0.595
    0.022
    0.530
    0.425
    1.390
    0.595
    0.022
    0.530
    0.830
    1.025
    0.531

    All dimensions are in millimeters.
    Thread Size X Pitch
    Part Number
    Grip Range
    Open End
    Closed End
    Hole Size
    in Sheet +0.15
    A
    B
    C
    D
    M
    A
    B
    C
    D
    K
    M
    ±0.38
    ±0.38
    Nom.
    Max.
    Ref.
    ±0.38
    ±0.38
    Nom.
    Max.
    Min.
    Ref.
    M4 x 0.7
    AEKS-470-2.0
    0.5 - 2.0
    10.67
    7.87
    0.48
    6.73
    7.75
    18.80
    7.87
    0.48
    6.73
    11.60
    16.26
    6.75
    M4 x 0.7
    AEKS-470-3.3
    2.0 - 3.3
    11.94
    7.87
    0.48
    6.73
    7.75
    18.08
    7.87
    0.48
    6.73
    11.60
    14.73
    6.75
    M5 x 0.8
    AEKS-580-3.3
    .5 - 3.3
    12.07
    8.64
    0.48
    6.73
    8.00
    25.15
    8.64
    0.48
    6.73
    15.60
    21.46
    7.60
    M5 x 0.8
    AEKS-580-5.7
    3.3 - 5.7
    14.86
    8.64
    0.48
    6.73
    8.00
    25.15
    8.64
    0.48
    6.73
    15.60
    18.67
    7.60
    M6 x 1
    AEKS-610-4.2
    .7 - 4.2
    14.73
    11.56
    0.55
    9.91
    9.65
    30.23
    11.56
    0.55
    9.91
    17.50
    25.53
    10.00
    M6 x 1
    AEKS-610-6.6
    4.2 - 6.6
    17.27
    11.56
    0.55
    9.91
    9.65
    30.23
    11.56
    0.55
    9.91
    17.50
    22.99
    10.00
    M8 x 1.25
    AEKS-8125-3.8
    .7 - 3.8
    17.530
    15.110
    0.550
    13.460
    11.940
    35.310
    15.110
    0.550
    13.460
    20.200
    29.850
    13.500
    M8 x 1.25
    AEKS-8125-7.9
    3.8 - 7.9
    20.450
    15.110
    0.550
    13.460
    10.800
    35.310
    15.110
    0.550
    13.460
    20.200
    26.040
    13.500
    M10 x 1.5
    AEKS-1015-3.8
    .7 - 3.8
    17.530
    15.110
    0.550
    13.460
    11.940
    35.310
    15.110
    0.550
    13.460
    20.800
    29.850
    13.500
    M10 x 1.5
    AEKS-1015-7.9
    3.8 - 7.9
    20.450
    15.110
    0.550
    13.460
    10.800
    35.310
    15.110
    0.550
    13.460
    20.800
    26.040
    13.500

    Back to Top


    MATERIAL AND FINISH SPECS


    Type
    Material
    Standard Finish
    AEK
    Steel, C-1008 or C-1010, or Equivalent
    Zinc Plate per ASTM B 633, Fe/Zn 8, Type II




    Back to Top


    PART NUMBER DESIGNATION

    AEK
    S
    632
    80
    B
    Type
    Material
    Thread
    Max.
    Closed End
    Code
    Grip
    Designation
