Solid Rivets: Truss Head


solid rivet - truss head
PRINT THIS PAGE
APPLICATION INFO & PRICING

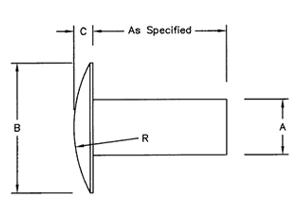

SOLID RIVET STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness Head Radius
A
B C R approx.
.090/.096 .206/.226 .026/.038 .239
.121/.127 .277/.297 .036/.048 .314
.152/.158 .348/.368 .045/.059 .392
.182/.191 .422/.442 .055/.069 .470
.213/.222 .495/.515 .066/.080 .555
.244/.253 .560/.590 .075/.091 .628
.273/.285 .631/.661 .085/.103 .706
.304/.316 .702/.732 .095/.113 .784

  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
