Solid Rivets: Round Head

solid rivets - round head
PRINT THIS PAGE
APPLICATION INFO & PRICING

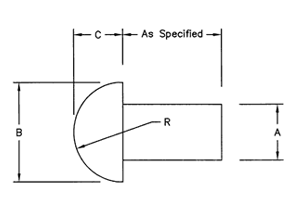

SOLID RIVET STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness Head Radius
A
 B C R approx.
.059/.064 .102/.122 .042/.052 .055
.090/.096 .162/.182 .065/.077 .084
.121/.127 .215/.235 .088/.100 .111
.152/.158 .268/.290 .110/.124 .138
.182/.191 .322/.348 .133/.147 .166
.213/.222 .379/.405 .158/.172 .195
.244/.253 .430/.460 .180/.196 .221
.273/.285 .484/.518 .202/.220 .249
.304/.316 .538/.572 .225/.243 .276

  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
