Solid Rivets: Countersunk Head

solid rivets - countersunk head
PRINT THIS PAGE
APPLICATION INFO & PRICING

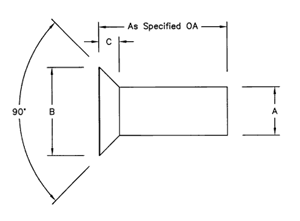

SOLID RIVET STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness
A
 B C
.059/.064 .110/.118 .027
.090/.096 .163/.179 .040
.121/.127 .217/.235 .053
.152/.158 .272/.293 .066
.182/.191 .326/.351 .079
.213/.222 .384/.413 .094
.244/.253 .437/.469 .106
.273/.285 .491/.528 .119
.304/.316 .547/.588 .133

  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
