Semi Tubular Rivet: Brake/Clutch

semi tubular rivets
PRINT THIS PAGE
APPLICATION INFO & PRICING

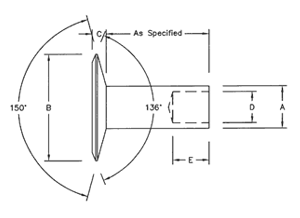

STANDARD DIMENSIONS

Shank Shank Diameter Head Diameter Head Thickness Hole Diameter Hole Depth
A
 B C D E
3- .141/.146 .289/.303 .035/.045 .099/.105 .218
4- .141/.146 .289/.303 .035/.045 .099/.105 .141
5- .141/.146 .351/.367 .041/.051 .099/.105 .141
7- .182/.188 .351/.367 .041/.051 .133/.139 .188
8- .182/.188 .458/.478 .053/.067 .133/.139 .188
10- .244/.252 .458/.478 .053/.067 .173/.183 .250
11- .151/.156 .351/.367 .041/.051 .107/.114 .250
16- .141/.146 .351/.367 .041/.051 .099/.105 .218
17- .182/.188 .351/.367 .041/.051 .133/.139 .281
20- .195/.200 .493/.507 .053/.067 .135/.141 .188
22- .141/.146 .287/.307 .036/.044 .099/.105 .140
23- .208/.212 .349/.369 .036/.044 .165/.169 .187
24- .182/.188 .349/.369 .036/.044 .133/.139 .187

  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
