Avdel Breakstem Rivets: Klamp-tite®

KLAMP-TITE® Fastening System
Non-Structural

The Klamp-Tite fastening system provides good vibration resistance. Exceptional clamp-up strength. Wide grip range.

Benefits:

  • Grip Tolerant
    Will fasten materials over a wide range of sheet thicknesses.
  • Hole Preparation
    The three legs of the Klamp-tite rivet provide a large blind-side bearing surface over which to distribute loads.
  • No Special Nose tip
    No special nose tip required to install non-structural Klamp-tite fasteners.
  • Protruding Head

    		•
  • Countersunk Head
    		•
  • Tensile Strength Data
    		•
  • Material and Finish
    		•

    fastening system
    PRINT THIS PAGE
    APPLICATION INFO & PRICING

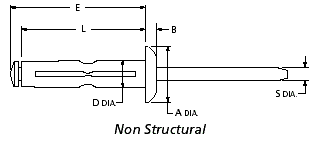

    PROTRUDING HEAD

    Diameter     Aluminum Grip Range L (max) E (max)
    3/16" 4.8mm   BAPK-64 .050-.250 0.895 1.000
    Hole Size= .204-.209 (5.18-5.31)     1.27-6.35 22.720 25.400
    A ref= .445 (11.30)   BAPK-66 .187-.375 0.990 1.095
    B ref= .088 (2.24)     4.75-9.53 25.130 27.810
    D ref= .198 (5.03)   BAPK-69 .375-.562 1.113 1.218
    S ref= .114 (2.90)     9.53-14.27 28.250 30.940
          BAPK-612 .562-.750 1.296 1.431
            14.27-19.05 32.920 36.320
    1/4" 6.4mm   BAPK-84 .060-.250 0.925 1.042
    Hole Size= .252-.262 (6.40-6.65)     1.52-6.35 23.500 26.470
    A ref= .560 (14.22)   BAPK-86 .187-.375 1.050 1.167
    B ref= .113 (2.87)     4.75-9.53 26.670 29.640
    D ref= .242 (6.15)
    S ref= .151 (3.84)

    Back to Top

    COUNTERSUNK HEAD

    Diameter     Aluminum Grip Range L (max) E (max)
    3/16" 4.8mm   BACK-66 .187-.375 0.990 1.095
    Hole Size= .204-.209 (5.18-5.31)     4.75-9.53 25.130 27.810
    A ref= .335 (8.57)   BACK-612 .562-.750 1.296 1.431
    B ref= .070 (1.79)     14.27-19.05 32.920 36.320
    D ref= .198 (5.03)
    S ref= .114 (2.90)

    Back to Top



    SHEAR & TENSILE STRENGTH

    Typical Shear and Tensile Data NS Klamptite in lbs. (Newtons)

    Rivet Diameter BAPKTR / BACKTR
    Shear Tensile
    3/16" (4.8mm) 290 (1290) 380 (1690)
    1/4" (6.4mm) 420 (1868) 588 (2615)




    Back to Top

    MATERIALS & FINISH

    Series Head Style Material Finish
    Body Mandrel Body Mandrel
    BAPK Protruding Aluminum Aluminum Plain Plain
    BACK Countersunk Aluminum Aluminum Plain Plain

    Back to Top
