Solid Rivets: Pan Head

solid rivet - pan head
PRINT THIS PAGE
APPLICATION INFO & PRICING

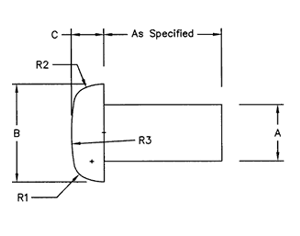

SOLID RIVET STANDARD DIMENSIONS

Shank Diameter Head Diameter Head Thickness Head Radius Head Radius Head Radius
A
 B C R1approx. R2approx. R3approx.
.059/.064 .098/.118 .030/.040 .019 .052 .217
.090/.096 .153/.173 .048/.060 .030 .080 .326
.121/.127 .205/.225 .066/.078 .039 .106 .429
.152/.158 .257/.279 .082/.096 .049 .133 .535
.182/.191 .308/.334 .100/.114 .059 .159 .641
.213/.222 .365/.391 .119/.133 .069 .186 .754
.244/.253 .414/.444 .135/.151 .079 .213 .858
.273/.285 .465/.499 .152/.170 .088 .239 .963
.304/.316 .518/.552 .169/.187 .098 .266 1.070
  • Wide variety of materials in stock available for immediate production
    • Aluminum - 5052 & 5056
    • Brass - CDA260 & 270
    • Copper- CDA110
    • Stainless Steel - T-302HQ & T-430
    • Steel - Low Carbon
  • Numerous finishes available
  • Design engineering assistance
  • Custom requirements encouraged
